EUROQUARTZ薄型MEMS滤波器系列24.890MHz XOPL53100UCTA
EUROQUARTZ新的薄型MEMS滤波器系列和短型滤波器目录
Euroquartz推出了新的薄型MEMS滤波器系列和新的短型滤波器目录。
频率控制专家Euroquartz推出了一系列新的薄型MEMS（微机电系统）滤波器产品，主要优点是尺寸小、外形极薄，非常适合嵌入式应用。该公司还发布了一份新的四页简式目录，涵盖其新型MEMS滤波器和传统RF滤波器系列。
利用最新的MEMS技术，可以生产出尺寸极小（≤0.5毫米）的带阻和带通滤波器产品。Euroquartz MEMS滤波器的优点是尺寸小，具有高可靠性和高性能，覆盖范围为2至50GHz。
MEMS滤波器类型包括带通、带阻、低通、衰减器芯片、延时线、基片集成波导（SIW）和微屏蔽。
它们具有1dB的低插入损耗，在3.0和7.5GHz衰减时不低于30dB，石英晶振非常适合基站、无线收发器系统和小尺寸RF前端等微波通信设备。
新的简表目录提供了MEMS带通滤波器以及分立晶体滤波器设计、表面贴装单片晶体滤波器和带通LC滤波器设计的基本规格。
Euroquartz定制LC和微波滤波器提供广泛的频率、拓扑和封装选择，范围从音频到3.0GHz，功率高达200W。拓扑包括低通、带通、高通和带阻。互调失真、相位和幅度匹配等特殊特性。在制造过程中得到优化。LC滤波器提供包括SMD在内的多种封装，并与现代自动化制造工艺兼容。
Euroquartz欧洲石英晶振还提供多种带通型和陷波型腔体滤波器。陷波型滤波器衰减窄带频率，同时允许所有其他频率通过，只有轻微损失。带通滤波器以极小的损耗通过窄带频率，同时衰减该频带以外的所有其他信号。腔体滤波器最高可达960MHz，采用任何类型的客户专用连接器，并在工厂调谐至要求的频率。
Euroquartz是一家总部位于英国的独立制造商，为全球电子制造业提供石英晶体、振荡器、滤波器和频率相关产品。该公司已通过AS9100认证，为包括主要原始设备制造商在内的广泛客户设计和制造全面的频率控制元件，涵盖广泛的应用领域，包括军事和航空航天、通信、通用电子、计算、控制系统和石化等。
EUROQUARTZ薄型MEMS滤波器系列24.890MHz XOPL53100UCTA
EUROQUARTZ薄型MEMS滤波器系列24.890MHz XOPL53100UCTA
New Low Profile MEMS Filter Range Plus Shortform Filters Catalogue
Euroquartz Launch Their New Low Profile MEMS Filter Range Plus A New Shortform Filters Catalogue.

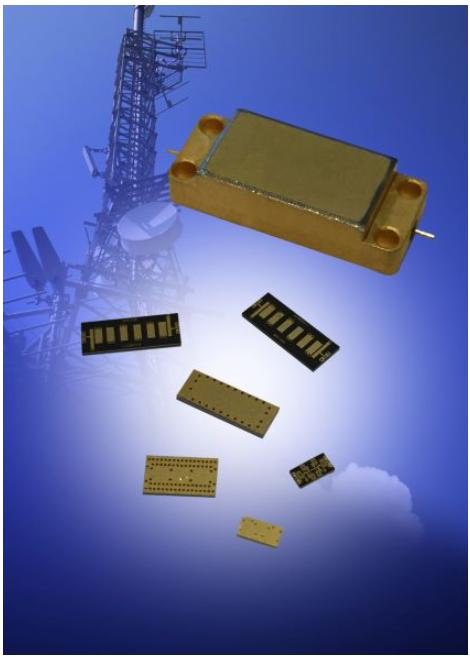

Frequency control specialist, Euroquartz has launched a new range of low profile MEMS (Micro ElectroMechanical System) filter products offering major benefits of small size and very low profile making them ideal for use in embedded applications. The company has also published a new four page shortform catalogue covering its new MEMS filters and traditional RF filter ranges.
Using the latest MEMS technology, it is possible to produce bandstop and bandpass filter products that offer a very low profile (≤0.5mm) solution. The advantages of Euroquartz MEMS filters are their small size offering high reliability and high performance, covering the range from 2 to 50GHz.
MEMS filter types available include bandpass, bandstop, lowpass, attenuator chip, time-delay line, substrate integrated waveguide (SIW) and micro-shielding.
Offering a low 1dB insertion loss with ≥30dB at 3.0 and 7.5GHz attenuation they are ideal for microwave communication equipment such as base stations, wireless transceiver systems and small size RF front-end requirements.
The new shortform catalogue provides basic specifications for a selection of the MEMS bandpass filters alongside discrete crystal filter designs, surface mount monolithic crystal filters and bandpass LC filter designs.
Euroquartz custom LC and microwave filters offer a broad selection of frequencies, topologies and packages ranging from audio to 3.0GHz and up to 200W in power. Topologies include low pass, band pass, high pass and band reject. Special characteristics such as IM distortion, phase and amplitude match etc. are optimised during manufacturing. LC filters are available in a variety of packages including SMD and are compatible with modern automated manufacturing processes.
Euroquartz also offers a wide range of cavity filters in band pass and notch types. A notch type filter attenuates a narrow band of frequencies while allowing all other frequencies to pass with only a slight loss. Band pass filters pass a narrow band of frequencies with very little loss while attenuating all other signals outside of the band. Cavity filters are available up to 960MHz with any type of customer-specific connector and are factory tuned to the frequencies requested.
Euroquartz is an independent UK-based manufacturer and supplier of quartz crystals, oscillators, filters and frequency-related products to the electronics manufacturing industry worldwide. The company is AS9100 registered and designs and manufactures a comprehensive range of frequency control components for a wide range of customers including major OEMs covering a broad spectrum of applications including military and aerospace, communications, general electronics, computing, control systems and petrochemical among many others.
